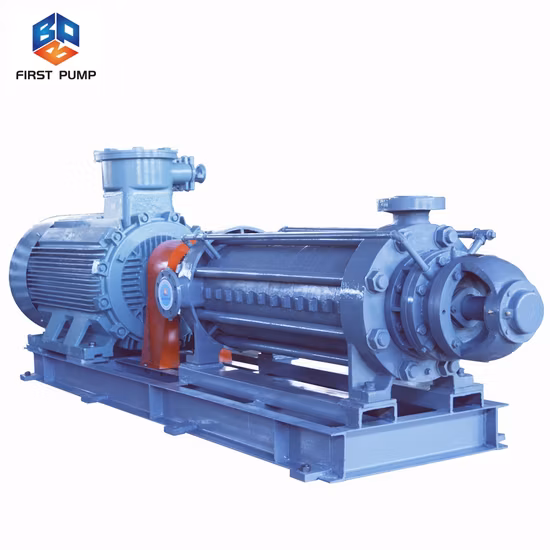

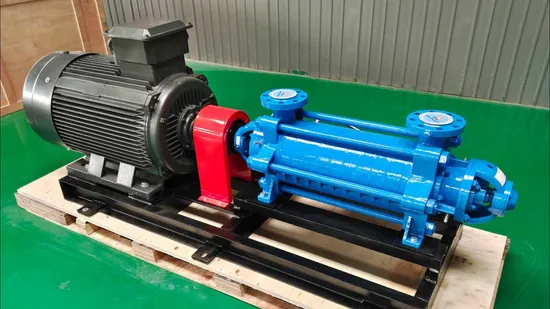

Multistage Pump

Basic Info

Model NO.	CDLF
Structure	Multistage Pump
Assembly	Liquid Pumps
Power	Electric
Start Up	Electric Pump
Type	Jet Pump
Application	Clarified Water Pump
Industry	Mechanical Pump
Media	Clean Water Pump
Performance	Explosion-Proof Pumps
Theory	Centrifugal Pump
Transport Package	Plywood Case and Foam
Specification	Standard
Trademark	Xiandai pump
Origin	China
HS Code	841370
Production Capacity	1000 Per Month

Product Description

CDL/F Multistage pump:

1. Material: SS304/SS316
2. CE certificate
3. TEFC motor, IEC standard
4. High pressure

CDLF Stainless steel centrifugal pump special in high pressure, all parts touch with liquid are of stainless steel while CDL the Inlet&outlet section, Bracket and Pump head material is cast iron.

Applications:
Urban water supply and pressure boosting
Industrial circulating system and processing system
Water supply for boiler, condensing system, high-rise building or fire fighting system.
Water treatment and RO system
Cooling water system

Features:
High efficiency
Easy installation and maintenance
Power saving and low noise
Small land occupancy
Prevent producing second pollution

Electric motor:
TEFC motor, IEC standard
50Hz or 60Hz, Single phase or 3-phase.
Protection class: IP55, Insulation class: F

Performance range
Capacity: Q up to 240m3/h
Head: H up to 305m
Temperature: From -15 to 120 degree Celsius
Speed: N 2900rpm/3500rpm
Power: P up to 45kw

50Hz Pump Performance Scope

Model	CDL1	CDL2	CDL3	CDL4	CDL5	CDL8	CDL12	CDL16	CDL20	CDL32	CDL42	CDL65	CDL85	CDL120	CDL150	CDL200
Rated flow[m3/h]	1	2	3	4	5	8	12	16	20	32	42	65	85	120	150	200
Flow range[m3/h]	0.4-2	1-3.5	1.2-4	1.5-8	2.5-8.5	5-12	7-16	8-22	10-28	16-40	25-55	30-80	50-110	60-150	80-180	100-240
Max. Pressure[bar]	21	23	22	22	24	21	22	22	23	26	30	22	17	16	16	16
Motor power[Kw]	0.37-2.2	0.37-3	0.37-3	0.37-4	0.37-5.5	0.75-7.5	1.5-11	2.2-15	1.1-18.5	1.5-30	3-45	4-45	5.5-45	11-75	11-75	18.5-110
Max. Efficiency[%]	44	46	54	59	66	64	63	66	69	76	78	80	81	74	73	79
